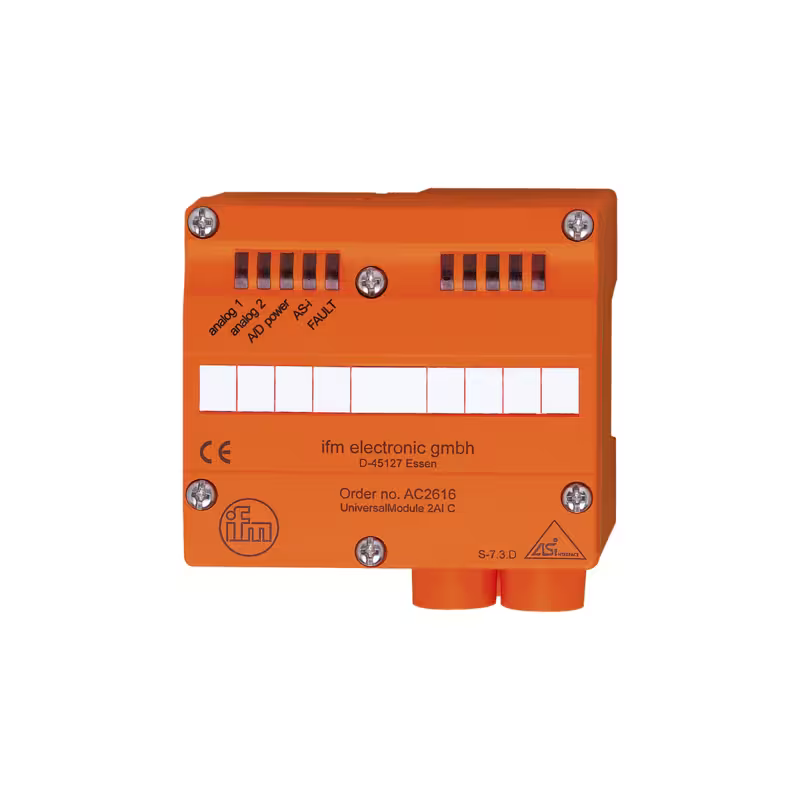

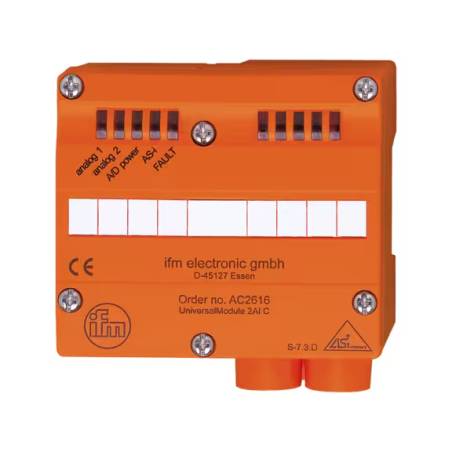

AS-Interface Universal Module AC2616 2AI IP65
  • AS-Interface Universal Module AC2616 2AI IP65

AS-Interface universal module AC2616 UniversalModule 2AI(C) IP65

AC2616
  • Easy to mount and wire
  • For the connection of sensors and actuators with cable entry
  • Device connection with cage clamps
  • Clearly visible powerful LEDs for displaying operation, switching status and error
€380.00
Tax included
Delivered within up to 3 days
Quantity
Last items in stock
1 Item

Ask about the product on WhatsApp
Description

Application

Application field installation

Electrical data

Operating voltage[V] 26.5...31.6 DC
Max. current consumption from AS-i[mA] 140
Reverse polarity protection yes
Additional voltage supply[V] 24...30 DC; (AUX)
Additional voltage supply optional
Max. current consumption from additional supply[mA] 550; (AUX)

Inputs / outputs

Number of inputs and outputs Number of analogue inputs: 2

Inputs

Sensor supply of the inputs AS-i / AUX
Max. total current rating of inputs[mA] 100
Number of analogue inputs 2; (Anschluss von 2-, 3-, 4-Draht-Sensoren)
Analogue input (current)[mA] 4...20
Short-circuit proof no
Resolution 16 (1 bit = 1 µA)
Accuracy[%] 0,5

Operating conditions

Ambient temperature[°C] 0...70
Storage temperature[°C] -25...85
Max. relative air humidity[%] 90; (non condensing)
Max. height above sea level[m] 2000
Protection IP 65

Tests / approvals

EMC
EN 50295
MTTF[years] 150

AS-i classification

AS-i master profile M3; M4
AS-i profile S-7.3.D
AS-i I/O configuration[hex] 7
AS-i ID code[hex] 3.D
Assignment of the parameter bits
parameter bit Designation
P0 filter in the A/D converter : 1 50 Hz * / 0 60 Hz
P1 channel 2: 1 projected / 0 not projected
P2 peripheral fault : 1 activated / 0 deactivated
P3 not used : 1 reserved / 0 not reserved

Mechanical data

Weight[g] 287
Housing rectangular
Type of mounting AS-i interface to FC-E lower parts
Dimensions[mm] 102 x 91 x 71
Materials housing: PBT

Displays / operating elements

Display
analogue signal LED, yellow channels AI1...AI2
operation LED, green AS-i, AUX
errors LED, red

Electrical connection

Module connection Flat cables

Remarks

Pack quantity 1 pcs.
